Trickbot gtag red5 distributed as a DLL file, (Wed, Mar 18th)

Introduction

Trickbot is an information stealer/banking malware that uses modules to perform different functions.  With Windows 10, these modules are loaded into memory, and we only see initial Trickbot binary and a text-based configuration file stored on the infected Windows 10 host.

Access to Trickbot-infected hosts is granted to other criminals groups to distribute other malware like Ryuk ransomware.  This sort of follow-up malware has previously been noted in conjunction with Powershell Empire traffic and/or Cobalt Strike activity on a Trickbot-infected host.

But today’s diary focuses on one of the distribution methods for the initial Trickbot infection.

Last month on 2020-02-25, I ran across an example of Trickbot (gtag red4) distributed as a Windows DLL file.  Normally, I see Trickbot distributed as an Windows EXE.  2020-02-25 was the first time I personally saw Trickbot distributed and made persistent as a DLL.

On Tuesday 2020-03-17, I ran across another example of Trickbot as a DLL.  This time, it was gtag red5, and I’ve documented the occasion in today’s ISC diary.

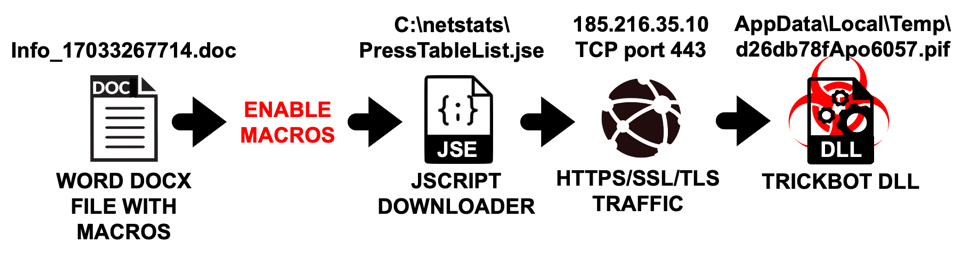

Of note, a Trickbot sample’s “gtag” indicates its specific method of distribution.  The “red” series gtag has been noted with Trickbot as a DLL file distributed using a JSE downloader.  The image below shows a flow chart for my infection on Tuesday 2020-03-17.


Shown above:  Flow chart for this specific gtag red5 Trickbot infection chain.

Images from the infection

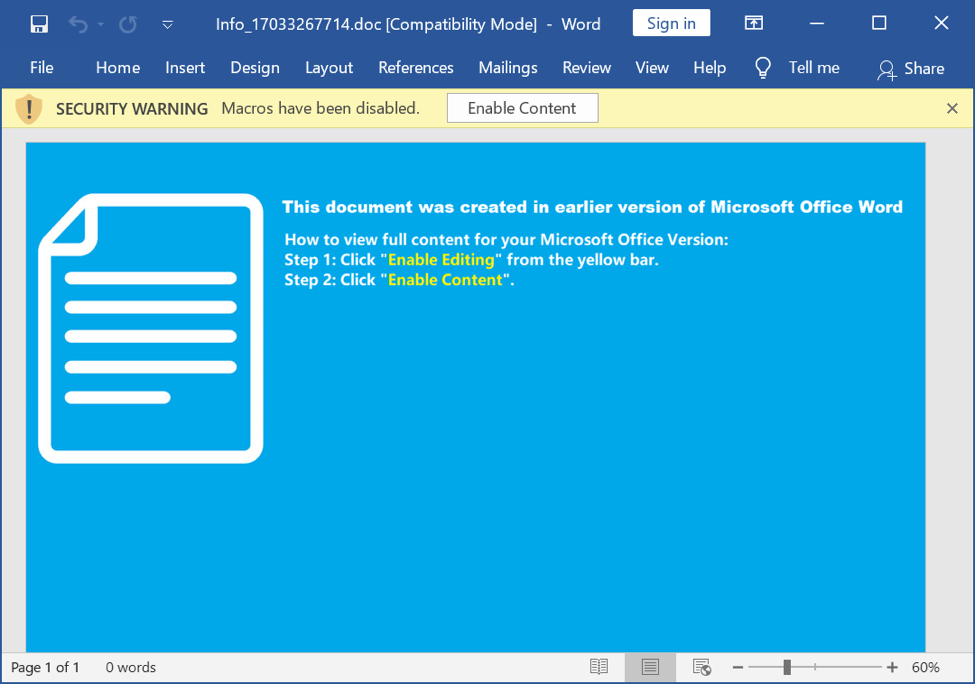

Shown above:  Screenshot of the Word document that kicked off this Trickbot infection.

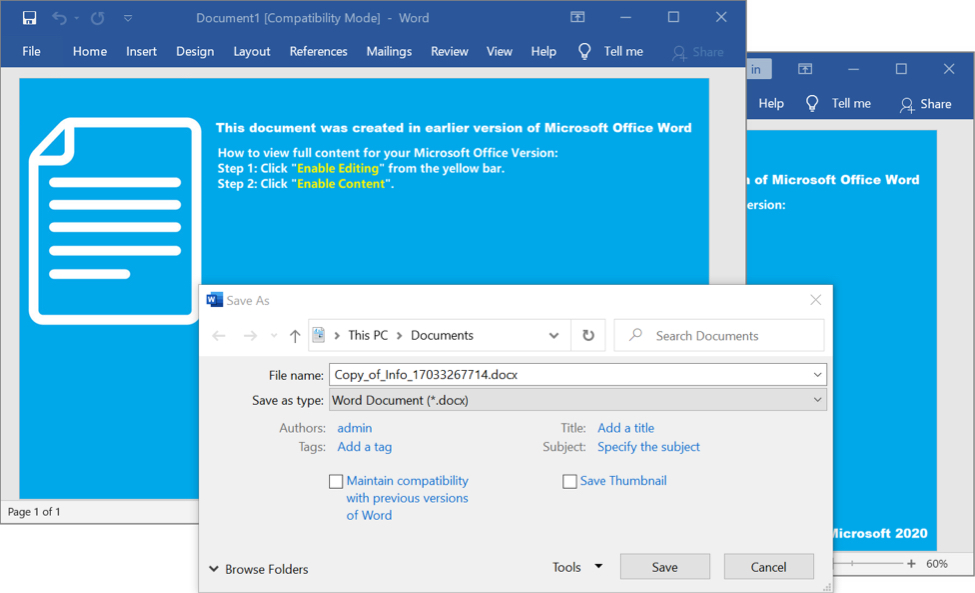

Shown above:  Enabling macros caused the Word document to save a copy of itself.


Shown above: Meanwhile, I found a JSE file that acted as a malware loader in a newly-created directory named C:netstats.

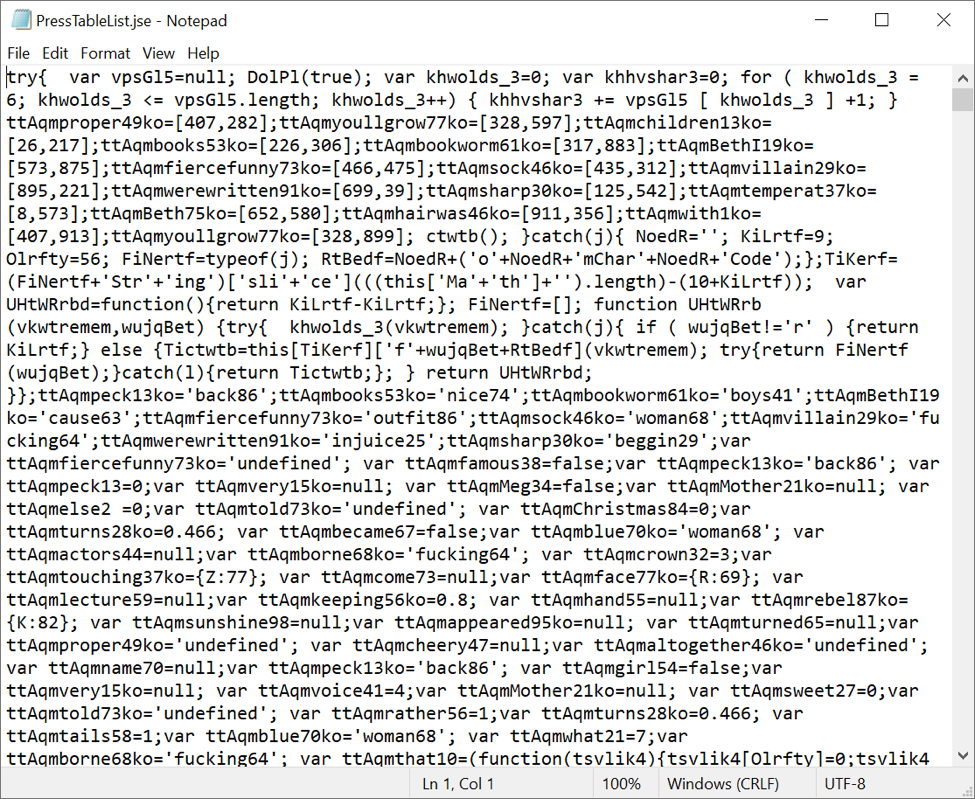

Shown above:  The JSE-based loader PressTableList.jse appears to be highly-obfuscated.


Shown above:  HTTPS/SSL/TLS traffic generated by PressTableList.jse filtered in Wireshark.

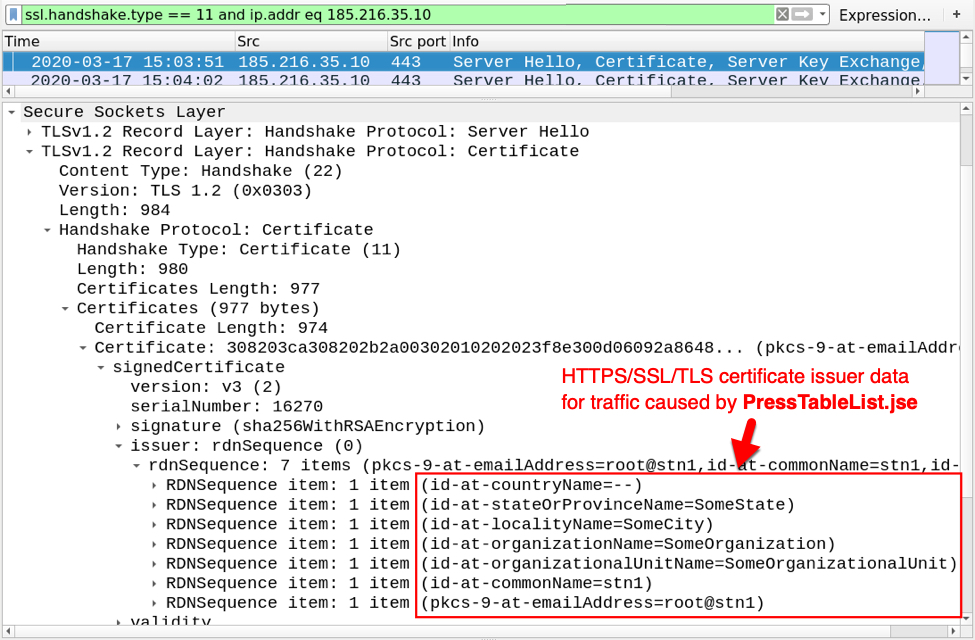

Shown above:  Certificate issuer data from HTTPS/SSL/TLS traffic caused by PressTableList.jse.

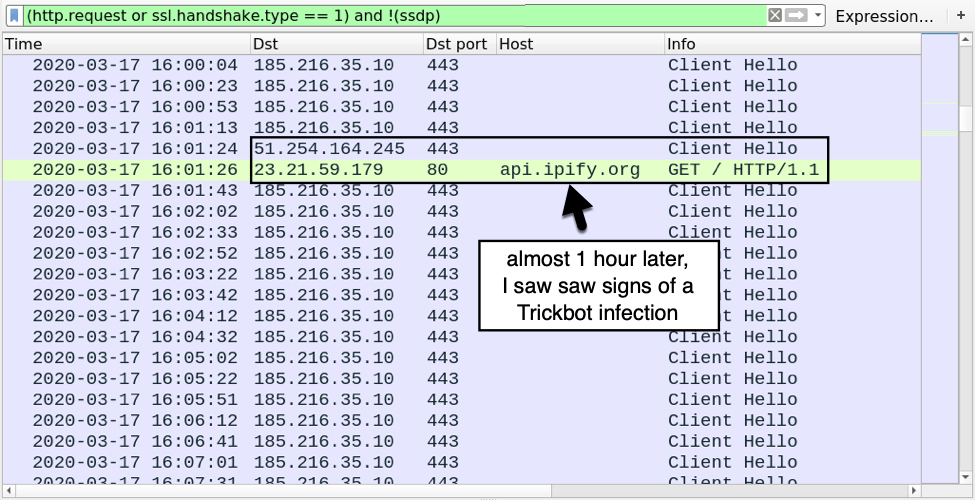

Shown above:  About 1 hour after the initial infection, I saw signs of a Trickbot infection.

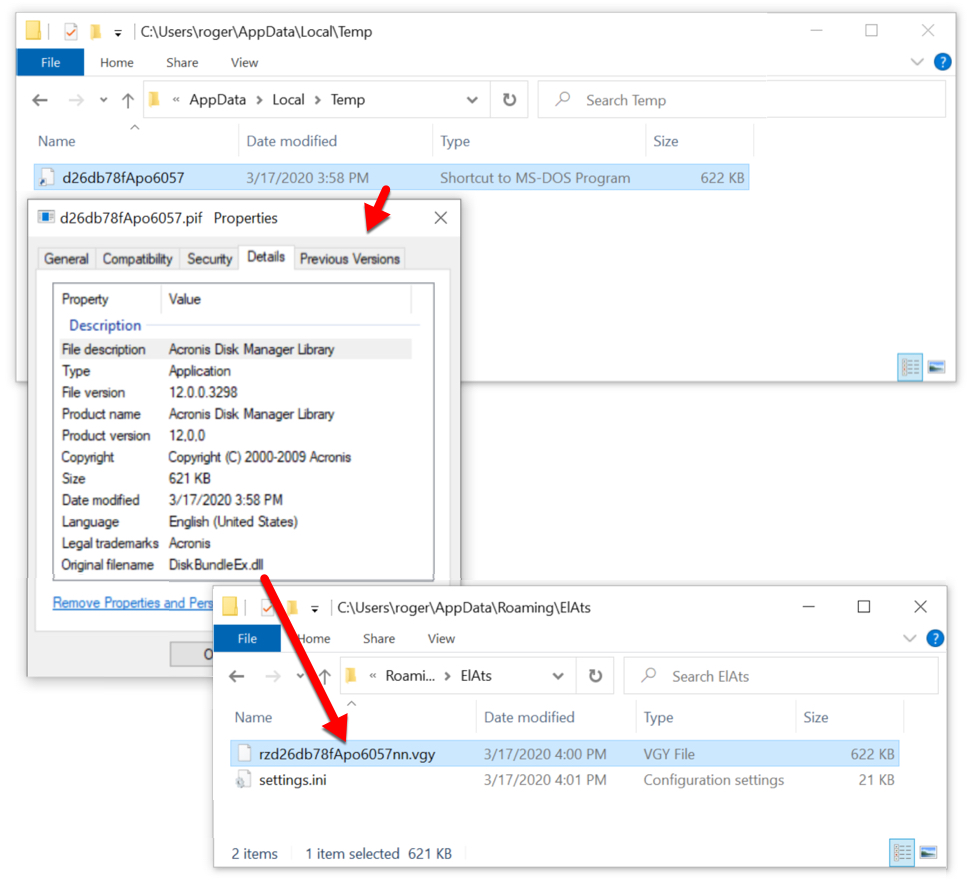

Shown above:  Shortly before the Trickbot traffic, I found evidence of a Trickbot binary saved to the infected Windows host.

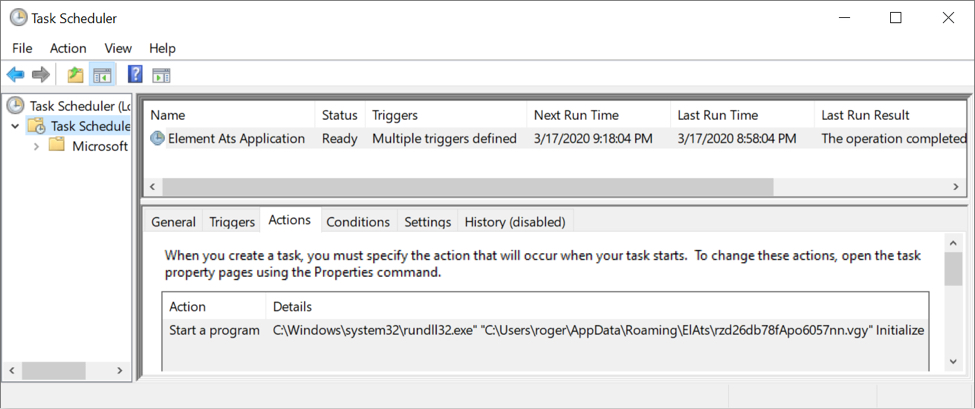

Shown above:  The scheduled task to keep Trickbot persistent indicates this Trickbot binary is a DLL.

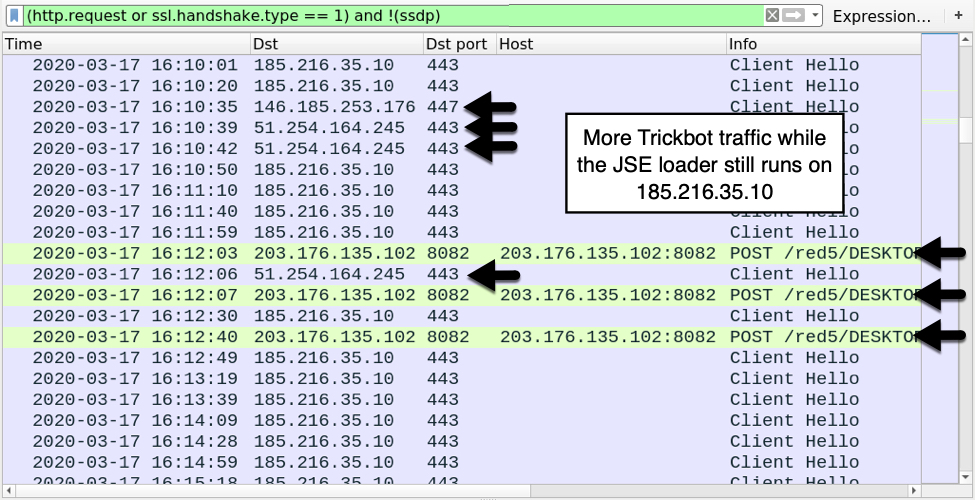

Shown above:  More Trickbot traffic, including HTTP requests over TCP port 8082 that reveal this Trickbot is gtag red5.

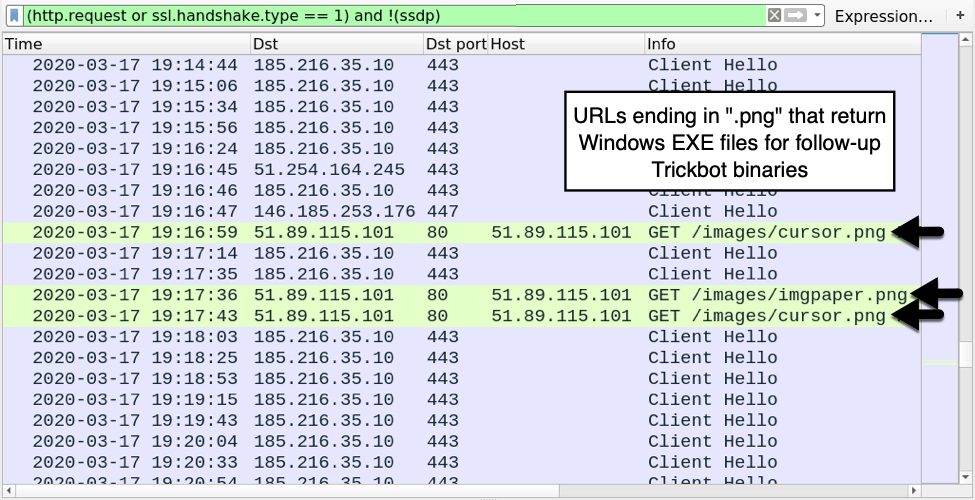

Shown above:  HTTP requests ending in .png that returned follow-up Trickbot binaries (these were EXE files, not DLL or PNG).

Indicators of Compromise (IoCs)

Traffic from an infected Windows host:

JSE loader traffic:

  • 185.216.35[.]10 port 443 – HTTPS/SSL/TLS traffic

Trickbot infection traffic:

  • port 80 – api.ipify[.]org – GET / [ip address check by the infected host, not inherently malicious]
  • 51.254.164[.]245 port 443 – HTTPS/SSL/TLS traffic
  • 146.185.253[.]176 port 447 – HTTPS/SSL/TLS traffic
  • 181.129.104[.]139 port 449 – HTTPS/SSL/TLS traffic
  • 46.4.167[.]250 port 447 – attempted TCP connections but no response from the server
  • 64.44.51[.]113 port 447 – attempted TCP connections but no response from the server
  • 203.176.135[.]102 port 8082 – 203.176.135[.]102:8082 – POST /red5/[host name]_[windows version].[32-digit hex string in ASCII]/90
  • 203.176.135[.]102 port 8082 – 203.176.135[.]102:8082 – POST /red5/[host name]_[windows version].[32-digit hex string in ASCII]/81/
  • 51.89.115[.]101 port 80 – 51.89.115[.]101 – GET /images/cursor.png
  • 51.89.115[.]101 port 80 – 51.89.115[.]101 – GET /images/imgpaper.png

Malware/artifacts from an infected Windows host

SHA256 hash: 08b885ccc3eda61a918bd1887b7669e54d03be79a3accae765c10cd0850ff10d

  • File size: 270,883 bytes
  • File name: Info_17033267714.doc
  • File description: Word doc with macro for JSE downloader

SHA256 hash: c0fe570561cc3546ed7e03523baf5e482ec9ee98e6a8de161fdc885f6721f0a0

  • File size: 49 bytes
  • File location: C:netstatsPressTableList.cmd
  • File description: CMD script to run PressTableList.jse
  • File content: cscript //nologo c:netstatsPressTableList.jse
  • Note: Not malicious by itself

SHA256 hash: 36ef77fe7b4a27813c8149674565f60aceb2fa9510e04732ef53367ce3dc567a

  • File size: 356,006 bytes
  • File location: C:netstatsPressTableList.jse
  • File description: JSE-style malware downloader

SHA256 hash: 445716d2fdd0cc8927c02bda53f44cba82f3a934d1a6cb9163760544b3e515e9

  • File size: 636,416 bytes
  • File location: C:Users[username]AppDataLocalTempd26db78fApo6057.pif
  • File location: C:Users[username]AppDataRoamingElAtsrzd26db78fApo6057nn.vgy
  • File description: DLL file retrieved by JSE-style downloader, this is Trickbot gtag red5

SHA256 hash: 262cf3e4da865ff7b028d2f1be407d1d37008644ee89c3e16f4b873e6cde344c

  • File size: 20,541 bytes
  • File location: C:Users[username]AppDataRoamingElAtssettings.ini
  • File description: Configuration/settings file used by Trickbot, different file hash and content for each infection. This is not inherently malicious on its own.

SHA256 hash: efb75ce7030fc32190909048fcb3fab024cb8779b9559a417b8d397352ae6ea2

  • File size: 696,371 bytes
  • File location: hxxp://51.89.115[.]101/images/cursor.png
  • File description: Follow-up Trickbot EXE (gtag: tot698) returned from URL ending in .png

SHA256 hash: 3850e5731f9f1430eafd477b5e0607aad48f80bb28e32d163b941414db7f1695

  • File size: 696,371 bytes
  • File location: hxxp://51.89.115[.]101/images/imgpaper.png
  • File description: Follow-up Trickbot EXE (gtag: lib698) returned from URL ending in .png

Final words

A pcap of the infection traffic along with the associated malware can be found here.

Brad Duncan
brad [at] malware-traffic-analysis.net
