As this week winds down, I wanted to highlight a threat that’s significantly diminished in recent years. For today’s #ThrowbackFriday, I’m reviewing an example of Rig exploit kit (EK) generated yesterday on Thursday 2021-01-14.
History of Rig EK
EKs are a malware distribution method. They’re channels to send malware to vulnerable Windows hosts. An EK’s payload is Windows-based malware.
Rig EK was discovered in 2014, back when EKs were much more common than today. Like other EKs in 2014, Rig exploited Internet Explorer (IE) and browser-based applications that worked with IE like Java, Flash, and Silverlight. Since then, people have increasingly moved to other browsers like FireFox and Chrome. Because of this, EK activity began to decline.
Windows 10 was introduced in 2015 with Microsoft Edge as its default browser. As more people switched to Windows 10, some EKs disappeared. Rig EK continued to decline, with a substantial drop in 2017. By 2018, Rig EK was one of only a few remaining EKs. Today, people still discover examples of Rig EK, but it’s only effective against out-of-date hosts running Windows 7 and using IE.
To prepare for throwback Friday, I fired up a vulnerable Windows 7 host, opened IE 11, and entered a URL that led to Rig EK.
Gate to Rig EK
An HTTPS gate that leads to Rig EK has been active since December 2020:
URLs like this act as a gate to an EK. This gate wouldn’t direct me to Rig EK when I tried it through a VPN. However, tethering through my phone worked. These gates are somewhat picky. Use the gate once, and it might work. But try it again from the same IP address, and it prevents you from reaching the EK again. You generally have to wait 12 to 24 hours before the gate will work again, if you’re coming from the same IP address.
Traffic from an infection

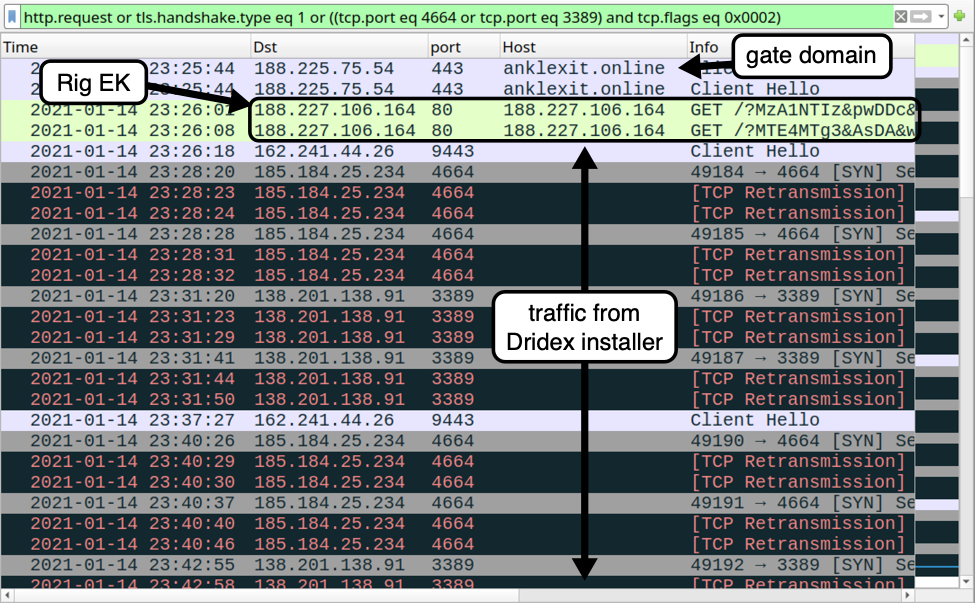

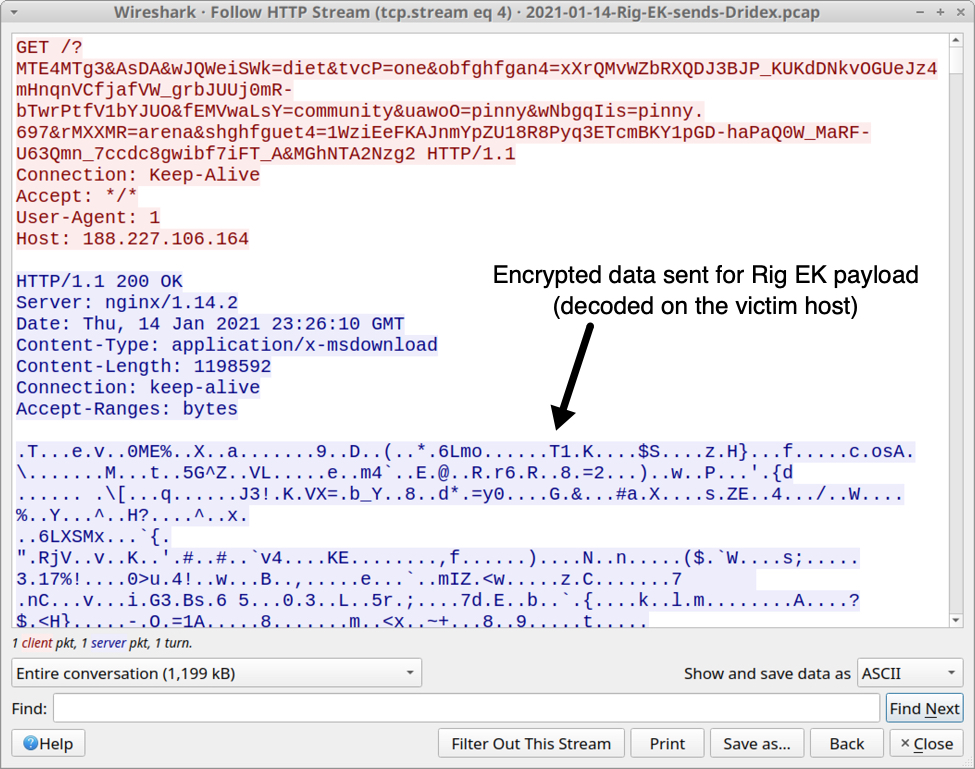

See the below images for traffic from the infection.
To get a better understanding of Dridex infection traffic, see this Wireshark tutorial I wrote about it last year.
Forensics on an infected Windows host
Indicators of Compromise (IOCs)
The following are indicators from this infection.
Traffic from an infected Windows host:
- 188.225.75[.]54 port 443 – anklexit[.]online – HTTPS URL – gate to Rig EK
- 188.227.106[.]164 port 80 – 188.227.106[.]164 – Rig EK
- 162.241.44[.]26 port 9443 – HTTPS traffic caused by Dridex installer
- 185.184.25[.]234 port 4664 – attempted TCP connection caused by Dridex installer
- 138.201.138[.]91 port 3389 – attempted TCP connection caused by Dridex installer

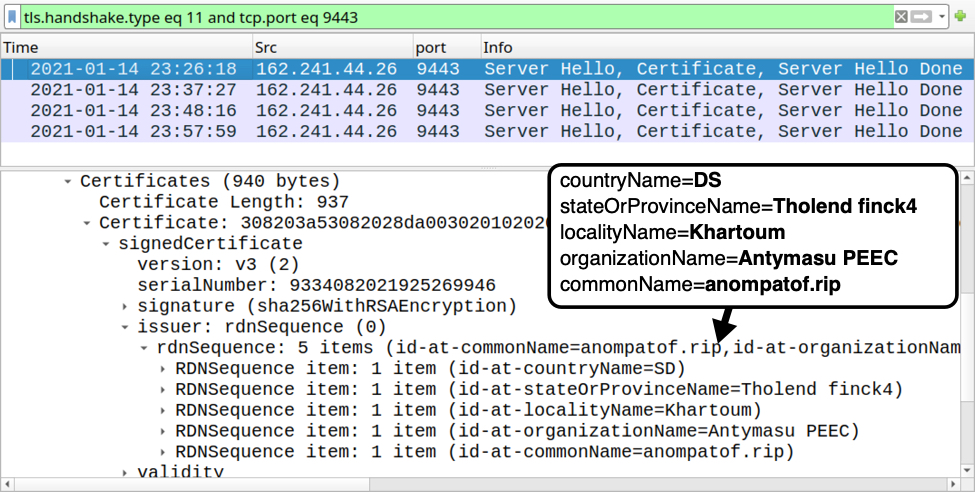

Certificate issuer data from Dridex HTTPS traffic to 162.241.44[.]26 over TCP port 9443:
- id-at-stateOrProvinceName=Tholend finck4
- id-at-organizationName=Antymasu PEEC
Malware/artifacts from the infected Windows 7 host:
- File size: 98,819 bytes
- File location: hxxp://188.227.106[.]164/?MzA1NTIz&pwDDc&AcAZl=pinny.866&shghfg[long string]
- File description: HTML for Rig EK landing page
- File size: 1,152 bytes
- File location: C:Users[username]AppDataLocalTemp3.tMp
- File size: 1,198,592 bytes
- File location: C:Users[username]AppDataLocalTempjv9qx.exe
- File description: Rig EK payload, Windows EXE to install Dridex malware
Pcap and malware/artifacts for this diary can be found here.
I wonder how it long this method of malware distribution will remain profitable. Apparently, enough people currently use out-of-date vulnerable Windows hosts. I guess this presents a big enough target base for the people behind Rig EK.
Every time I find Rig EK, I think back to all the entries I posted on my blog from 2013 through 2016 featuring Rig and other EK infections. That’s why I consider today’s diary a #ThrowbackFriday.
brad [at] malware-traffic-analysis.net
