Controlling network access to ICS systems, (Mon, Jul 3rd)

Category :

SANS Full Feed

Posted On :

After 6 years, I have returned to the world of operating technologies. One of my main concerns at that time regarding the use of new technologies was to seek access control via the network to the different devices that make it up, because unlike the world of information technologies where access is sought to be widespread and there are multiple ways to perform access control at the application and network level, the world of industrial control has limitations depending on the version of the supervision and control protocols that are supported.

This cybersecurity requirement is mandatory for sectors such as electricity under the active standards NERC CIP-003-8 and NERC CIP-005-7. The suggested architecture to implement is based on the Purdue Enterprise Reference Architecture taken for the SANS ICS410 course, which we can see in figure 1. Its components are:

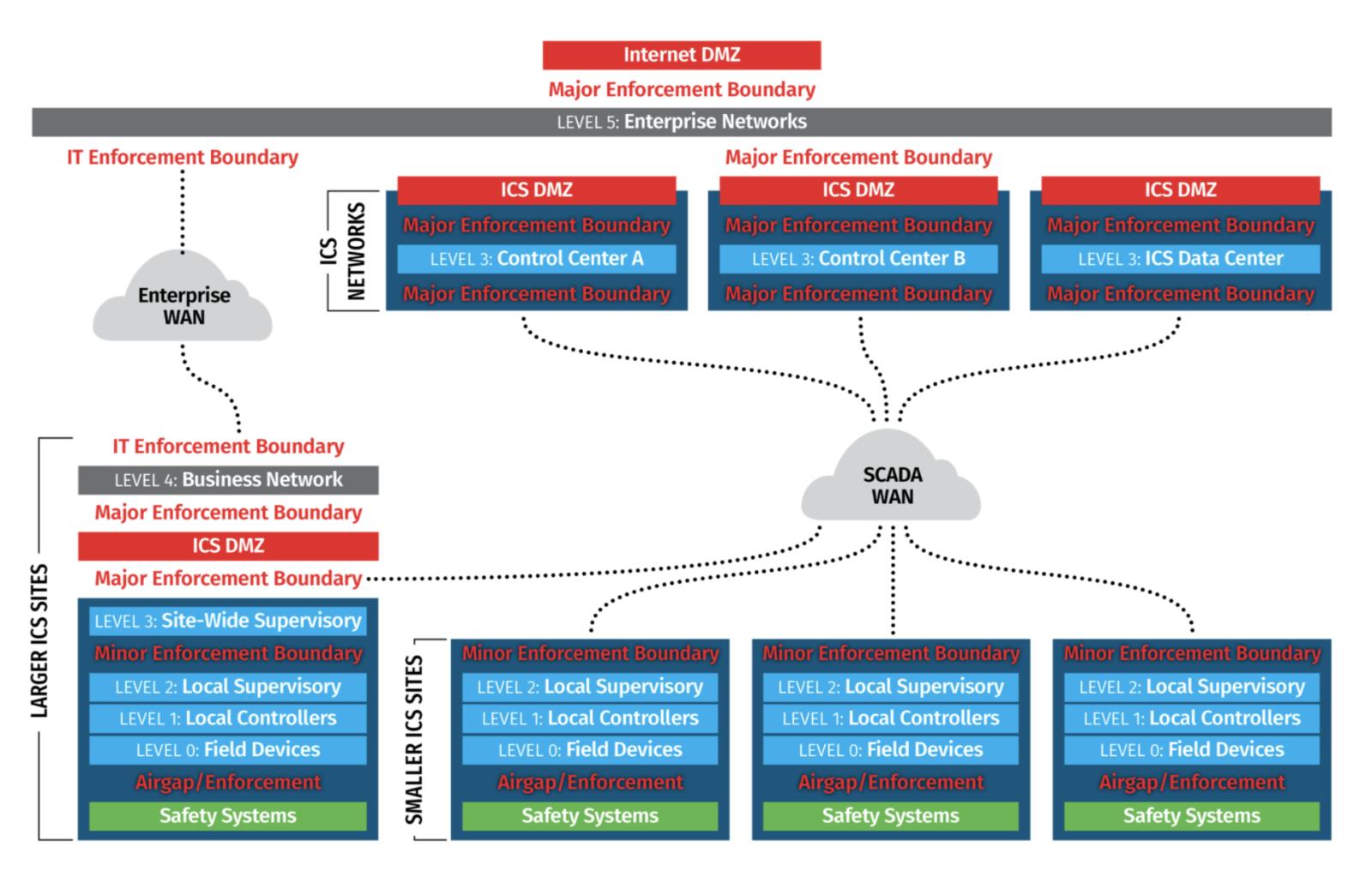

Figure 1: SANS ICS410 reference model based on Purdue Enterprise Reference Architecture.

Let’s discuss the details for each level:




Level 5: Enterprise Networks

Services at the corporate level that assist specific business divisions and individual users. Typically, these systems are housed within the company’s data centers.

Servers providing:

Active Directory (AD)
Internal email
Corporate Billing System
Real-time Backup solutions

Level 4: Business Networks

Information technology networks specifically tailored for business users at localized sites. These networks provide connection to the enterprise’s wide area network (WAN) and may also allow local internet access. However, direct internet access should not be granted beyond this level.

IT workstations
File and print servers (We should only have print servers, but unfortunately there are still lots of file servers out there)
Phone systems
Backup Active Directory


Level 3:

Site-Wide Supervisory

Monitoring, supervisory, and operational support for all or part of the regions covered by the company

Engineering workstations
Human to machine interfaces (HMIs)
Data lake systems for analytics

Level 2: Local Supervisory

Observation and managerial oversight for an individual process, cell, line, or a Distributed Control System (DCS) solution. Processes should be segregated based on function, type, or risk, ensuring they remain distinct from each other.

Local Control room

Level 1: Local Controllers

Apparatus and systems designed to offer automated regulation of a process, cell, line, or a Distributed Control System (DCS) solution. Contemporary Industrial Control System (ICS) solutions frequently integrate Levels 1 and 0.

Programmable Logic Controllers (PLCs)
Control processors
Remote terminal units (RTUs)
Specific process microcontrollers

Level 0: Field Devices

Sensors and actuators utilized in the cell, line, process, or DCS solution. These are frequently amalgamated with Level 1.

Sensors and actuators
Smart sensors/actuators speaking fieldbus protocols
Intelligent Electronic Devices (IEDs)
Industrial Internet-of-Things (IIoT) devices
Communications gateways

Figure 2: Purdue Enterprise Reference Architecture description

Why am I talking about this? I did some research on shodan and found the following:

I found a universe of 499 open-access HMI. This means attackers can get full view of an ICS process from the internet with no restriction. The following chart shows the country distribution:

Figure 3: Top countries with HMI published to the internet.

For all those HMI published to the Internet, almost half uses VNC without authentication:

Figure 4: Top HMI publisher applications to the internet

I found a universe of 25234 Modbus RTU devices published on the internet. The following chart shows the country distribution:

Figure 5: Top countries with modbus RTU devices published to the Internet

Now we can conclude the following:

The relevant gap continues in the security measures found for IT vs. those found in OT. It is important that companies that have critical infrastructure management within their business establish a transversal cybersecurity strategy that manages all types of technology, including OT.
The cloud is here to stay. It is definitely feasible to implement SCADA systems using cloud environments. However, the electronic protection of supervisory and control environments as established by standards such as the revised NERC ones is not negotiable.

Manuel Humberto Santander Peláez
SANS Internet Storm Center – Handler
Twitter: @manuelsantander
Mastodon:[email protected]
email:[email protected]
